Belt Rakes River Max
Belt rakes RIVER MAX series are the evolution of the NEW FALCON and NEW FALCON PREMIUM series, designed to work in extension with respect to the tractor track. The rotation of the belt occurs via a hydraulic motor which allows the use of the RIVER MAX even on slopes with an inclination of up to 45°. Transport is possible by tilting the rake vertically thanks to hydraulic pistons.
- Combs movements on auto-lubricating plastic bushings
- Sturdy steel sheet body for multi optional attachments
- Pulleys groups with cast-iron hubs and grease lubrication
- Sturdy belt with double-rod connecting bars
- Safe thanks to the CE standards protections
- Sandblasting and oven powder coating
- 2 years warranty
| SPECIFICATIONS | RIVER MAX 240 | RIVER MAX 260 | RIVER MAX 280 | RIVER MAX 300 |
|---|---|---|---|---|
| COMBS N° x TEETH N° | 13×4-5 | 14×4-5 | 15×5 | 16×5 |
| MULTILAYER BELTS SECTION | 2 sect. D | 2 sect. D | 2 sect. E | 2 sect. E |
| WORKING WIDTH (Cm) | 220 | 240 | 260 | 280 |
| MAX WORKING WIDTH (Cm) | 255 | 275 | 300 | 320 |
| WEIGHT (Kg) | 290 | 312 | 450 | 475 |

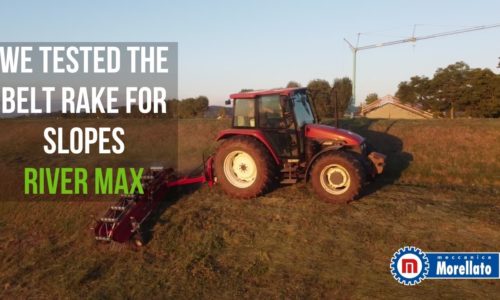

Videos
